Equipment made from 1.2 and 1.5 mm thick CNS 14301
Shell made of 2 mm thick CNS 14404
With hot and cold water supply at the top
Connection piece for water 10 mm
Safety fittings and valves
(calibrated to 0.5bar)
with sight glass and pressure valve
3 settings "0" disabled,
"1" for half filling 50%,
"2" for whole filling 100 %
Automatic shut-off in the event of a fault
Thermostat for temperature control
Automatic water level control
in the inner wall

Electric heating by means of special
"Incoloy 800" made from a special
resistance alloy
High capacity heating by CE-DIN 18855
for pressure cookers

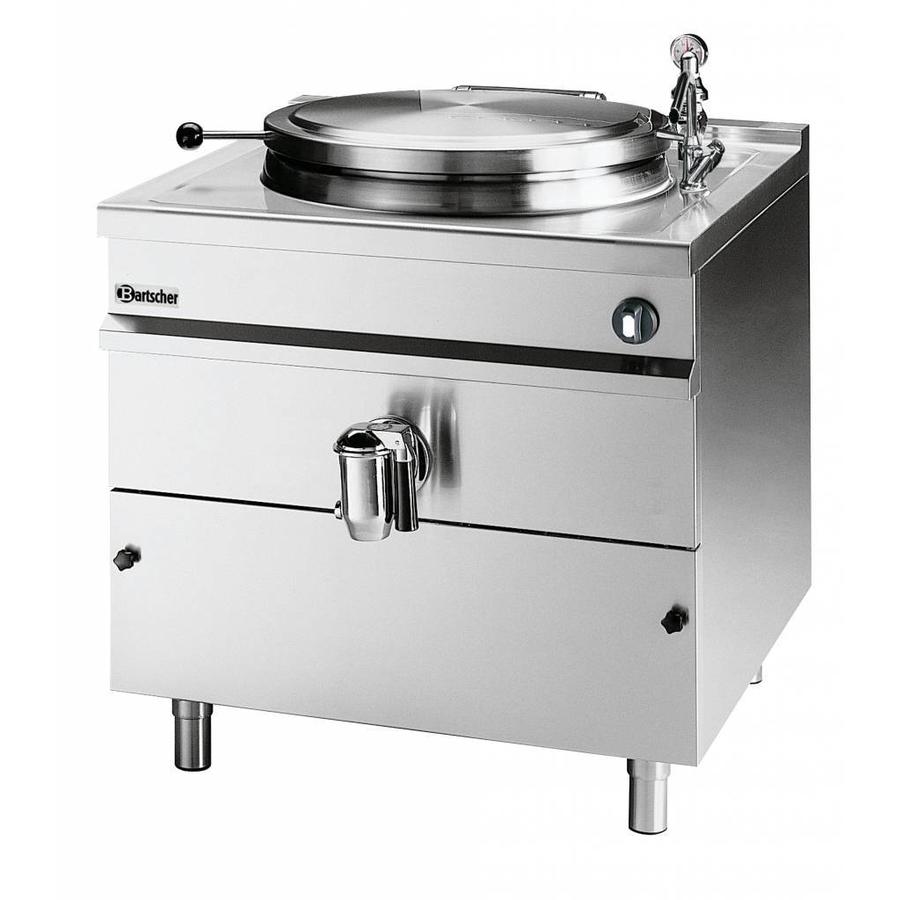

Model: PM9 IE200
Dimensions: W 1000 x D 1150 x H 900 mm
Content: 200 litres
Power: 32 kW
Boiler inner dimensions: Ø 750 x H 520 mm
Weight: 240 kg

Suitable for all types of soup.

Nonstick.

Click here for electrical diagram
