Specifications

• T° : -18° -22°
• kW: 2.61
• HP : 3
• Volts : 400/3N 50Hz
• kilograms : 48
• M³ : 0.75

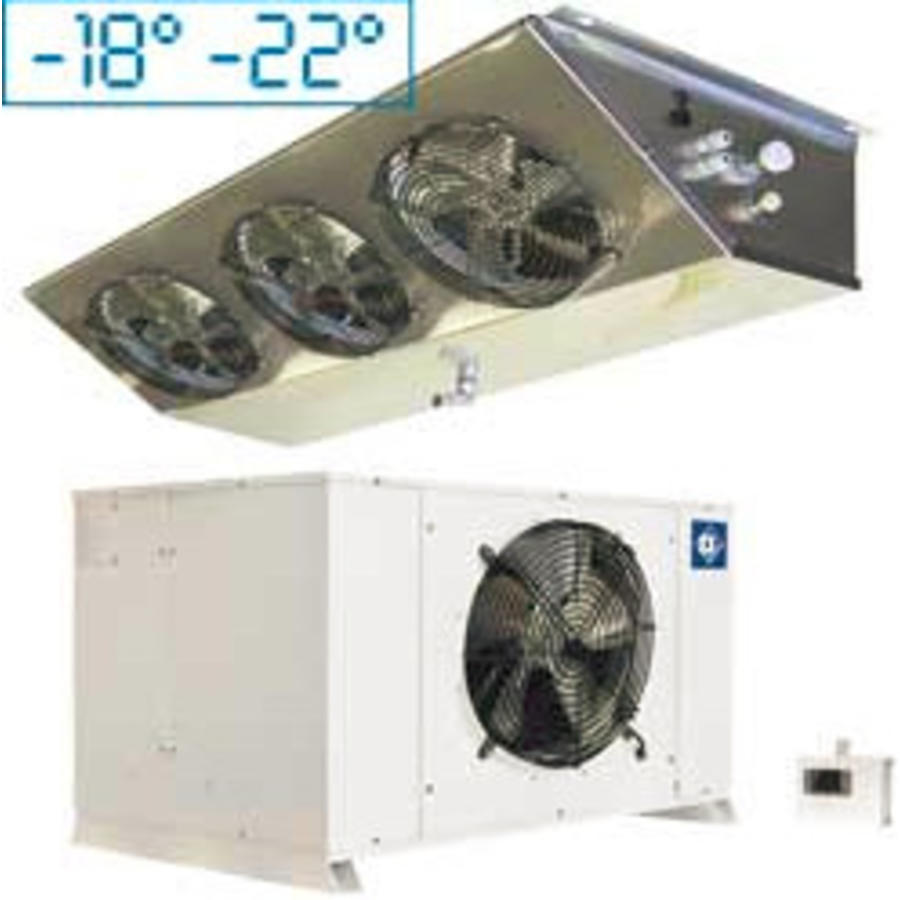

Refrigeration units "Bi-block" Due to its conception, the condenser is determined for an outdoor installation and can be placed anywhere, floor, ceiling, wall,... The pipes (pre-loaded) and the cables are included for connection within a radius of 5 meters ( 10 meters optional).
- All groups are equipped with a low pressure pressure switch (fixed setting), the versions on 400V/3 are also equipped with a high pressure pressure switch (fixed setting) (C-PMAX), as well as a cable for the door switch and lighting (not provided) .
- Separate digital control panel, connected to the group by a 5 m cable, functions controlled by microprocessor.
- Automatic defrosting (by resistors), drain placed under the evaporator.
- The low temperature groups (SN) are equipped with a connection cable for the door resistance.

INFO:
Attention: provided as standard, the ideal ambient temperature for operation should not be below 10°C, otherwise a pre-heater (H-PR) must be provided, a fan pressure switch for the condenser (H-PVC) as well as a heated electric panel (H-TEC).

Dimensions in mm: (856x596xh586) (1370x475xh265)
