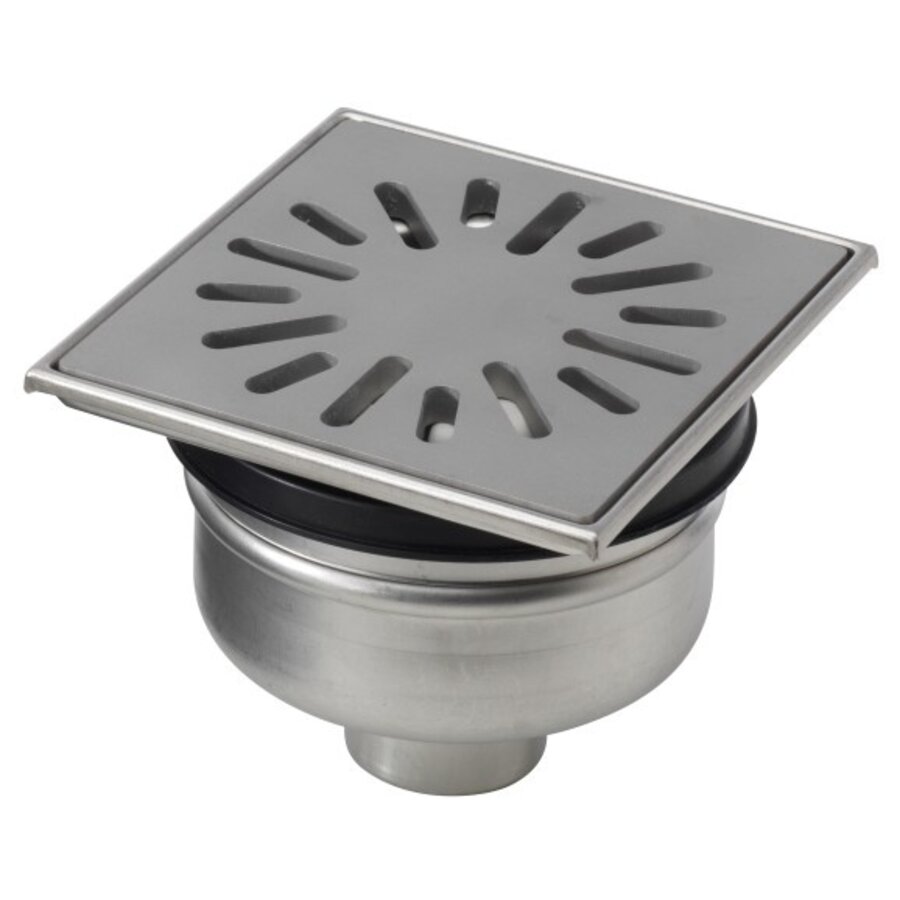

HorecaTraders Floor well | 150x150mm | stainless steel 304 | vertical connection | 1.00 l/s
HorecaTraders Floor well | 150x150mm | stainless steel 304 | vertical connection | 1.00 l/s
- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT4515Z
- Garantie: 1 year
offer valid until: t/m 30-11-2024
-
Description
EAN 8717775930549 Connection Bottom connection
Installation depth 90-120mm
Size 150x150mm
Anti-slip value grid R10
Tax grid 30 kN (3,000 kg)
Grid load class EN 1253 L15 (1,500kg)
Capacity (max.) 1.00 l/s
Connection diameter ø 50mm
Rotatable 360° Yes
Bucket No
Tiltable Yes
Material stainless steel 304
Cuff material SBR rubber
Material attachment Stainless steel AISI 304 (EN 1.4301)
Smell trap material PPC plastic
Grid material Stainless steel AISI 304 (EN 1.4301)
Floor drain material Stainless steel AISI 304 (EN 1.4301)
Grid material thickness 10.0mm
Grid surface treatment Glass bead blasted
Placement advice Yes
Product protection Mortar lid
Smell lock 50mm
Deodorant lock removable With innovative handle
Grid slot width 8.0mm
Mortar cover for structural work or prefab Yes
Application Bathroom, Industry, Utility
Locked grid No
Glueable No
Adjustable vertically 30mm
Adjustability Adjustable in height
Floor drain standard EN1253
Form grid Square, slotted holes
Dirt trap No
Water seal standard EN1253
-
Reviews (0)
EAN | 8717775930549 |
---|
Connection |
Bottom connection |
---|---|
Installation depth |
90-120mm |
Size |
150x150mm |
Anti-slip value grid |
R10 |
Tax grid |
30 kN (3,000 kg) |
Grid load class EN 1253 |
L15 (1,500kg) |
Capacity (max.) |
1.00 l/s |
Connection diameter |
ø 50mm |
Rotatable 360° |
Yes |
Bucket |
No |
Tiltable |
Yes |
Material |
stainless steel 304 |
Cuff material |
SBR rubber |
Material attachment |
Stainless steel AISI 304 (EN 1.4301) |
Smell trap material |
PPC plastic |
Grid material |
Stainless steel AISI 304 (EN 1.4301) |
Floor drain material |
Stainless steel AISI 304 (EN 1.4301) |
Grid material thickness |
10.0mm |
Grid surface treatment |
Glass bead blasted |
Placement advice |
Yes |
Product protection |
Mortar lid |
Smell lock |
50mm |
Deodorant lock removable |
With innovative handle |
Grid slot width |
8.0mm |
Mortar cover for structural work or prefab |
Yes |
Application |
Bathroom, Industry, Utility |
Locked grid |
No |
Glueable |
No |
Adjustable vertically |
30mm |
Adjustability |
Adjustable in height |
Floor drain standard |
EN1253 |
Form grid |
Square, slotted holes |
Dirt trap |
No |
Water seal standard |
EN1253 |
