HorecaTraders Floor well | 250x250mm | stainless steel 304 | vertical connection | 3.70 l/s

Image 1 / 2

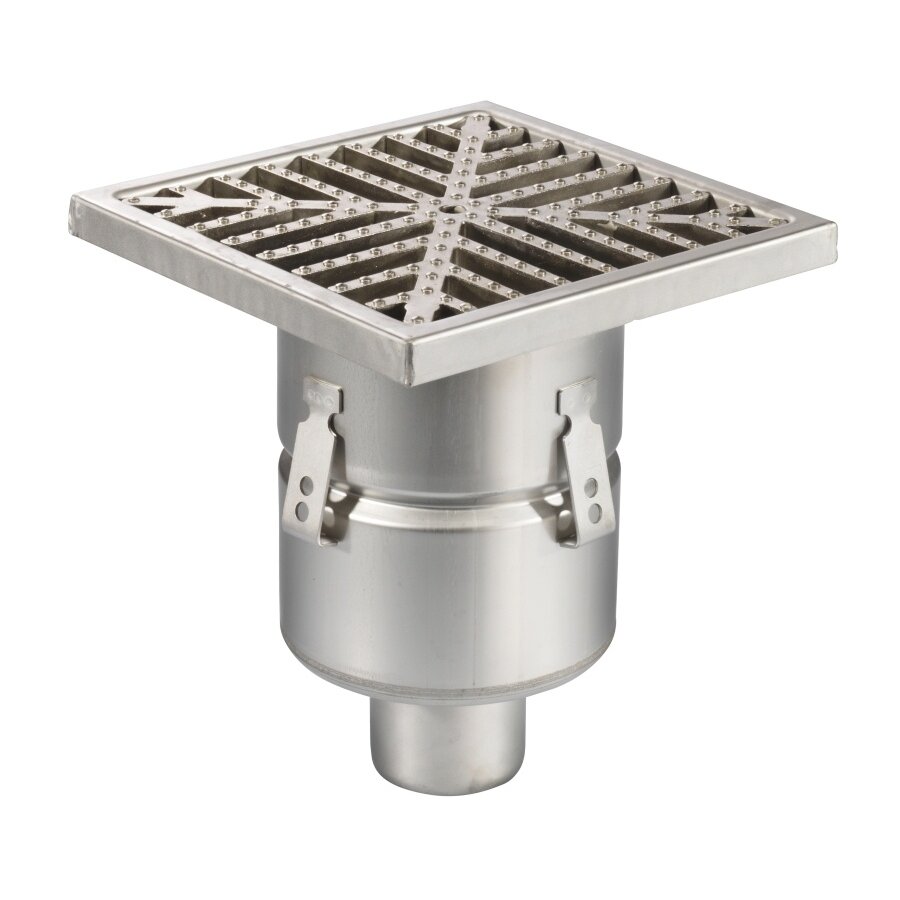

A beautiful floor drain with not too large dimensions where the floor drain is made of stainless steel. In addition, the floor drain is a bottom connection and you cannot change it. And with a connection diameter of ø 110 mm.

Availability:
In stock
Brand: HorecaTraders
Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
Garantie: 1 year

€481,84 (€583,03 Incl. BTW)

offer valid until: t/m 30-11-2024

Description

EAN	8717775935537

Connection	Bottom connection
Installation depth	221mm
Grounding point	Yes

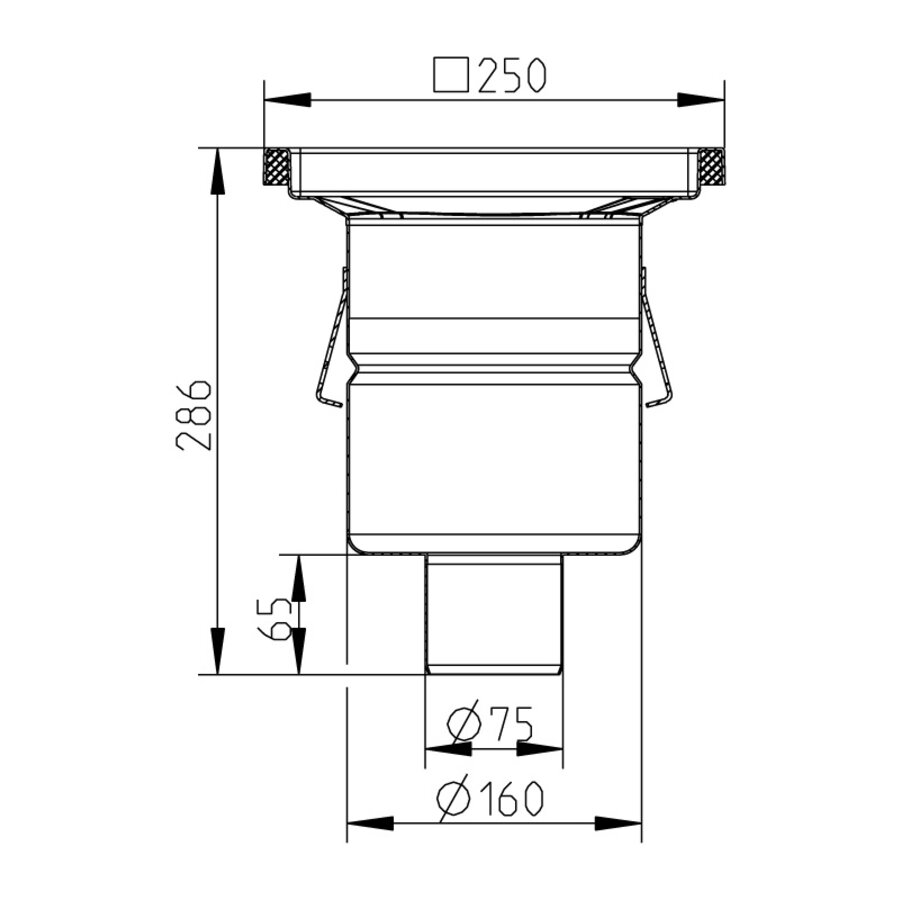

Size	250x250mm
Anti-slip value grid	R10
Tax grid	50 kN (5,000 kg)
Grid load class EN 1253	R50 (5,000kg)
Grid load class EN 1433	A15 (4,000kg)
Particularities	Hygienic grid
Capacity (max.)	3.70 l/s
Construction grid	HygienicPro cast
Connection diameter	ø 75mm
Bucket	No
Material	stainless steel 304
Smell trap material	Stainless steel AISI 316L (EN 1.4404)
Grid material	Stainless steel AISI 304C (EN 1.4308)
Floor drain material	Stainless steel AISI 304 (EN 1.4301)
Dirt trap material	Stainless steel AISI 304 (EN 1.4301)
Grid material thickness	25.0mm
Grid surface treatment	No
Product protection	Mortar lid
Smell lock	50mm
Deodorant lock removable	Two-piece with handle
Grid slot width	18.0mm
Mortar cover for structural work or prefab	Yes
Application	Hospitality, Industry, Utility
Locked grid	No
Glueable	No
Adjustability	Not adjustable in height
Floor drain standard	EN1253
Dirt trap volume	0.90 l
Form grid	Square, slotted holes
Dirt trap	Yes
Water seal standard	EN1253
