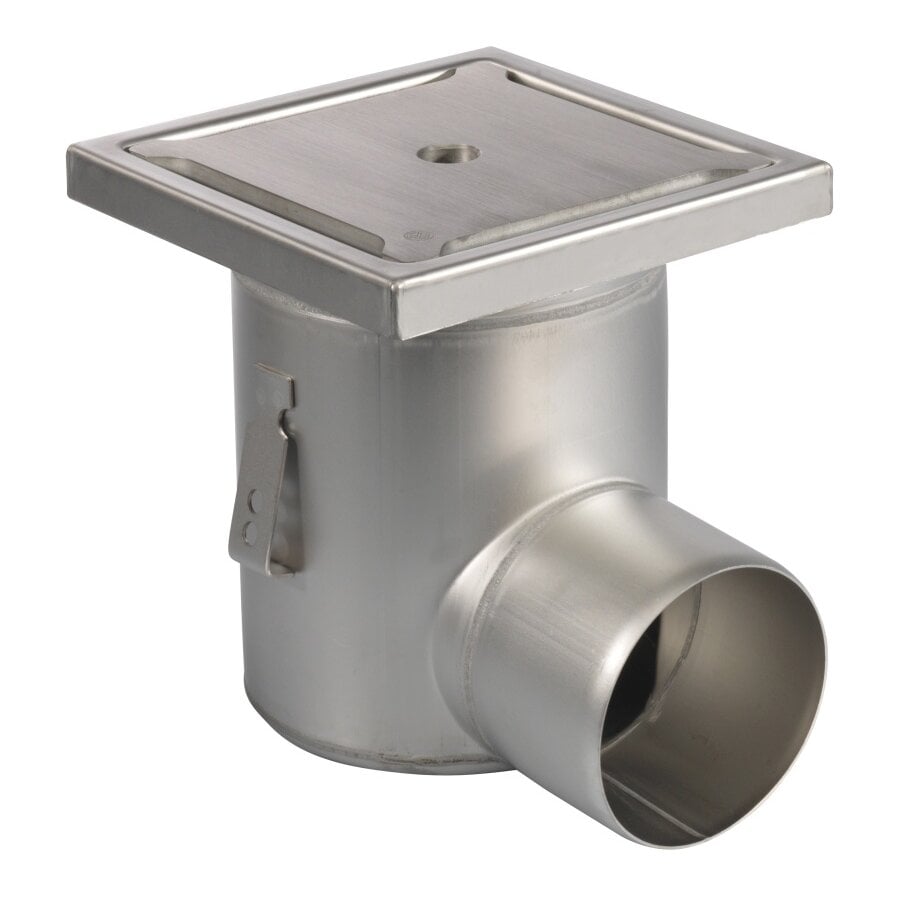

HorecaTraders Floor well | 200x200mm | stainless steel 304 | horizontal connection | 3.70 l/s
HorecaTraders Floor well | 200x200mm | stainless steel 304 | horizontal connection | 3.70 l/s
- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT177014
- Garantie: 1 year
offer valid until: t/m 31-12-2024
-
Description

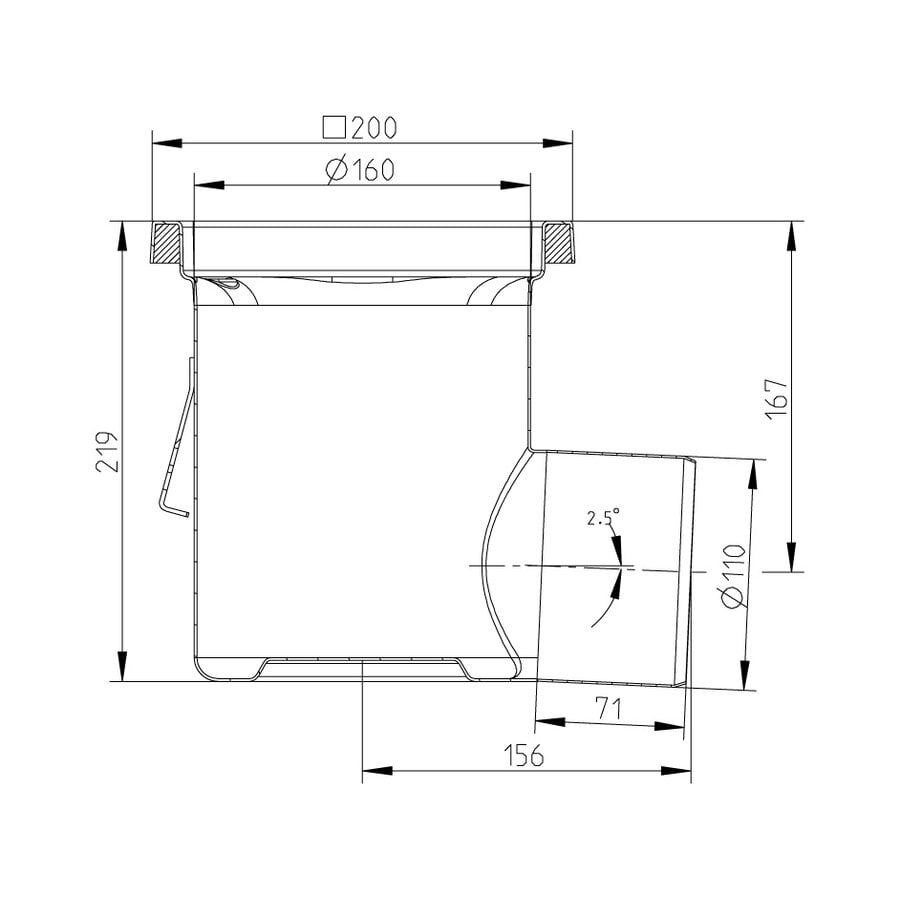

EAN 8717775935483 Connection Side connection
Installation depth 219mm
Grounding point Yes
Size 200x200mm
Anti-slip value grid R10
Tax grid 50 kN (5,000 kg)
Grid load class EN 1253 R50 (5,000kg)
Capacity (max.) 3.70 l/s
Construction grid Plate cover
Connection diameter ø 110mm
Bucket No
Material stainless steel 304
Smell trap material Stainless steel AISI 316L (EN 1.4404)
Grid material Stainless steel AISI 304 (EN 1.4301)
Floor drain material Stainless steel AISI 304 (EN 1.4301)
Dirt trap material Stainless steel AISI 304 (EN 1.4301)
Grid material thickness 10.0mm
Grid surface treatment Pickled, passivated, brushed
Product protection Mortar lid
Smell lock 50mm
Deodorant lock removable Two-piece with handle
Grid slot width 10.0mm
Mortar cover for structural work or prefab Yes
Application Hospitality, Industry, Utility
Locked grid No
Glueable No
Adjustability Not adjustable in height
Floor drain standard EN1253
Dirt trap volume 0.90 l
Form grid Square, slotted holes
Dirt trap Yes
Water seal standard EN1253
-
Reviews (0)
EAN | 8717775935483 |
---|
Connection |
Side connection |
---|---|
Installation depth |
219mm |
Grounding point |
Yes |
Size |
200x200mm |
Anti-slip value grid |
R10 |
Tax grid |
50 kN (5,000 kg) |
Grid load class EN 1253 |
R50 (5,000kg) |
Capacity (max.) |
3.70 l/s |
Construction grid |
Plate cover |
Connection diameter |
ø 110mm |
Bucket |
No |
Material |
stainless steel 304 |
Smell trap material |
Stainless steel AISI 316L (EN 1.4404) |
Grid material |
Stainless steel AISI 304 (EN 1.4301) |
Floor drain material |
Stainless steel AISI 304 (EN 1.4301) |
Dirt trap material |
Stainless steel AISI 304 (EN 1.4301) |
Grid material thickness |
10.0mm |
Grid surface treatment |
Pickled, passivated, brushed |
Product protection |
Mortar lid |
Smell lock |
50mm |
Deodorant lock removable |
Two-piece with handle |
Grid slot width |
10.0mm |
Mortar cover for structural work or prefab |
Yes |
Application |
Hospitality, Industry, Utility |
Locked grid |
No |
Glueable |
No |
Adjustability |
Not adjustable in height |
Floor drain standard |
EN1253 |
Dirt trap volume |
0.90 l |
Form grid |
Square, slotted holes |
Dirt trap |
Yes |
Water seal standard |
EN1253 |
