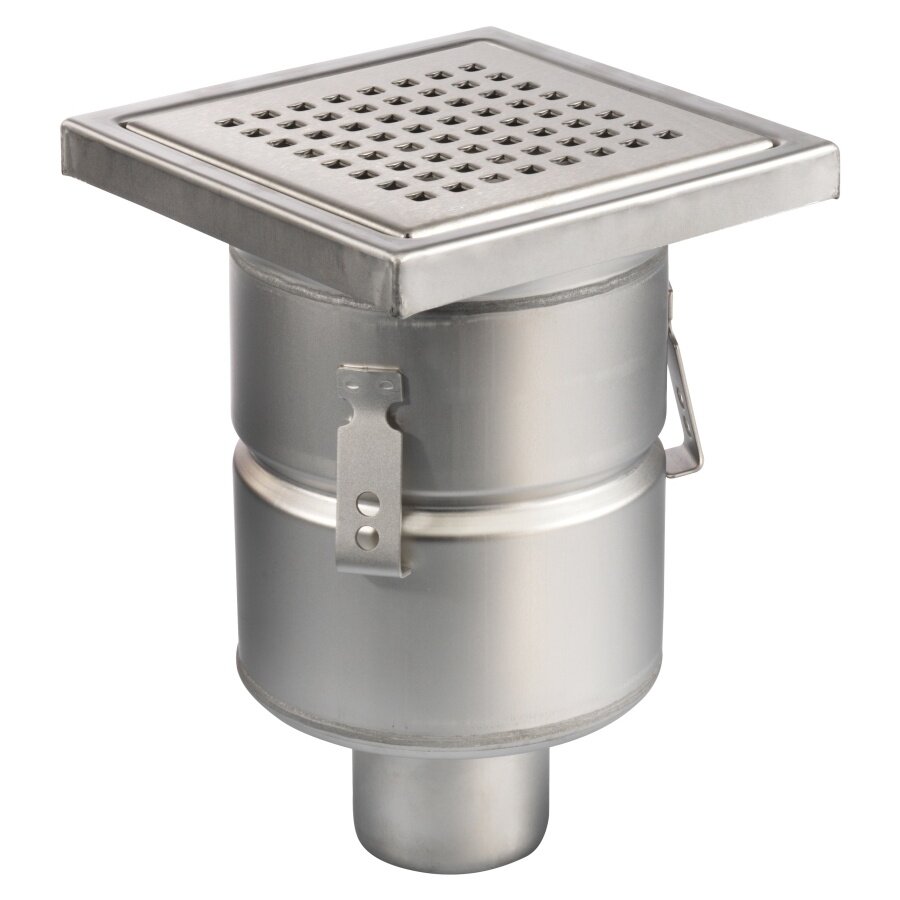

HorecaTraders Floor well | 200x200mm | stainless steel 304 | vertical connection | 3.70 l/s
HorecaTraders Floor well | 200x200mm | stainless steel 304 | vertical connection | 3.70 l/s
- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT177004
- Garantie: 1 year
offer valid until: t/m 31-12-2024
-
Description
EAN 8717775935384 Connection Bottom connection

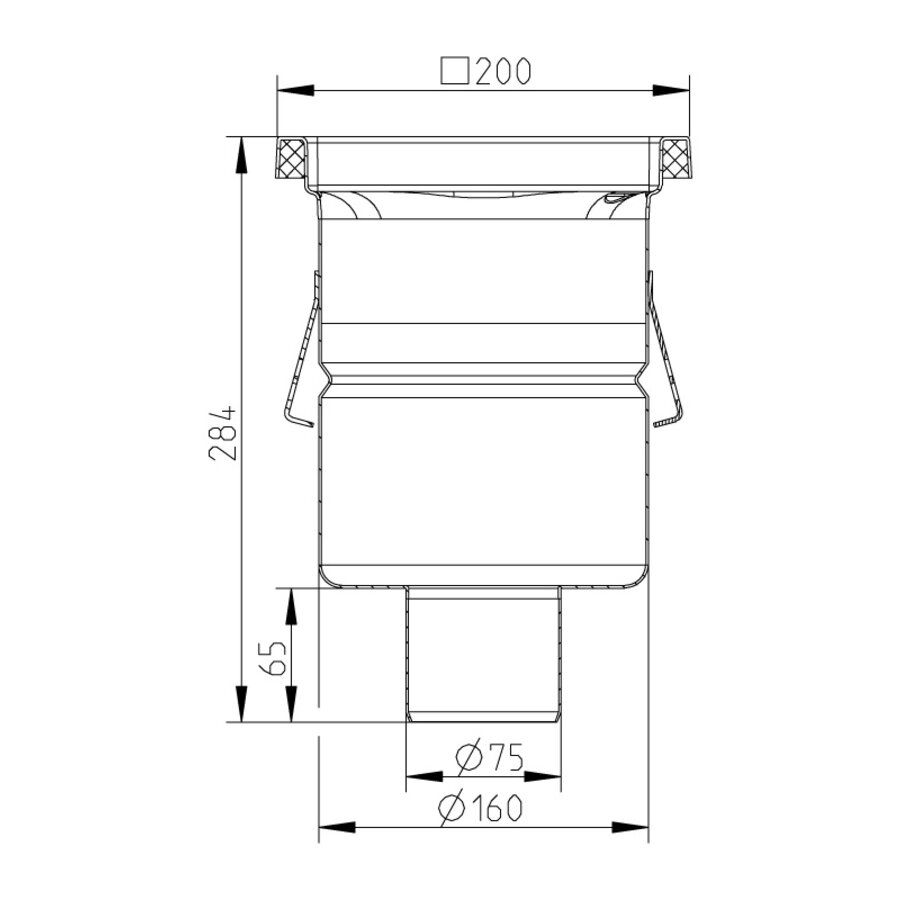

Installation depth 219mm
Grounding point Yes
Size 200x200mm
Anti-slip value grid R10
Tax grid 3kN (300kg)
Grid load class EN 1253 K3 (300kg)
Capacity (max.) 3.40 l/s
Construction grid Shower grate
Connection diameter ø 75mm
Bucket No
Material stainless steel 304
Smell trap material Stainless steel AISI 316L (EN 1.4404)
Grid material Stainless steel AISI 304 (EN 1.4301)
Floor drain material Stainless steel AISI 304 (EN 1.4301)
Dirt trap material Stainless steel AISI 304 (EN 1.4301)
Grid material thickness 2.0mm
Grid surface treatment brushed
Product protection Mortar lid
Smell lock 50mm
Deodorant lock removable Two-piece with handle
Grid slot width 8.0mm
Mortar cover for structural work or prefab Yes
Application Hospitality, Industry, Utility
Locked grid No
Glueable No
Adjustability Not adjustable in height
Floor drain standard EN1253
Dirt trap volume 0.90 l
Form grid Square, square holes
Dirt trap Yes
Water seal standard EN1253
-
Reviews (0)
EAN | 8717775935384 |
---|
Connection |
Bottom connection |
---|---|
Installation depth |
219mm |
Grounding point |
Yes |
Size |
200x200mm |
Anti-slip value grid |
R10 |
Tax grid |
3kN (300kg) |
Grid load class EN 1253 |
K3 (300kg) |
Capacity (max.) |
3.40 l/s |
Construction grid |
Shower grate |
Connection diameter |
ø 75mm |
Bucket |
No |
Material |
stainless steel 304 |
Smell trap material |
Stainless steel AISI 316L (EN 1.4404) |
Grid material |
Stainless steel AISI 304 (EN 1.4301) |
Floor drain material |
Stainless steel AISI 304 (EN 1.4301) |
Dirt trap material |
Stainless steel AISI 304 (EN 1.4301) |
Grid material thickness |
2.0mm |
Grid surface treatment |
brushed |
Product protection |
Mortar lid |
Smell lock |
50mm |
Deodorant lock removable |
Two-piece with handle |
Grid slot width |
8.0mm |
Mortar cover for structural work or prefab |
Yes |
Application |
Hospitality, Industry, Utility |
Locked grid |
No |
Glueable |
No |
Adjustability |
Not adjustable in height |
Floor drain standard |
EN1253 |
Dirt trap volume |
0.90 l |
Form grid |
Square, square holes |
Dirt trap |
Yes |
Water seal standard |
EN1253 |
