Equipment made from 1.2 and 1.5 mm thick CNS 14301
Shell made of 2 mm thick CNS 14404
With hot and cold water supply at the top
Connection piece for water 10 mm
Safety fittings and valves
(calibrated to 0.5bar)
with sight glass and pressure valve
3 settings "0" disabled,
"1" for filling 50 %,
"2" for whole filling 100 %
Automatic shut-off in the event of a fault
Thermostat for temperature control
Automatic water level control
in the inner wall

Heating by high-speed stainless steel burners
degree of combustion
Piezo ignition

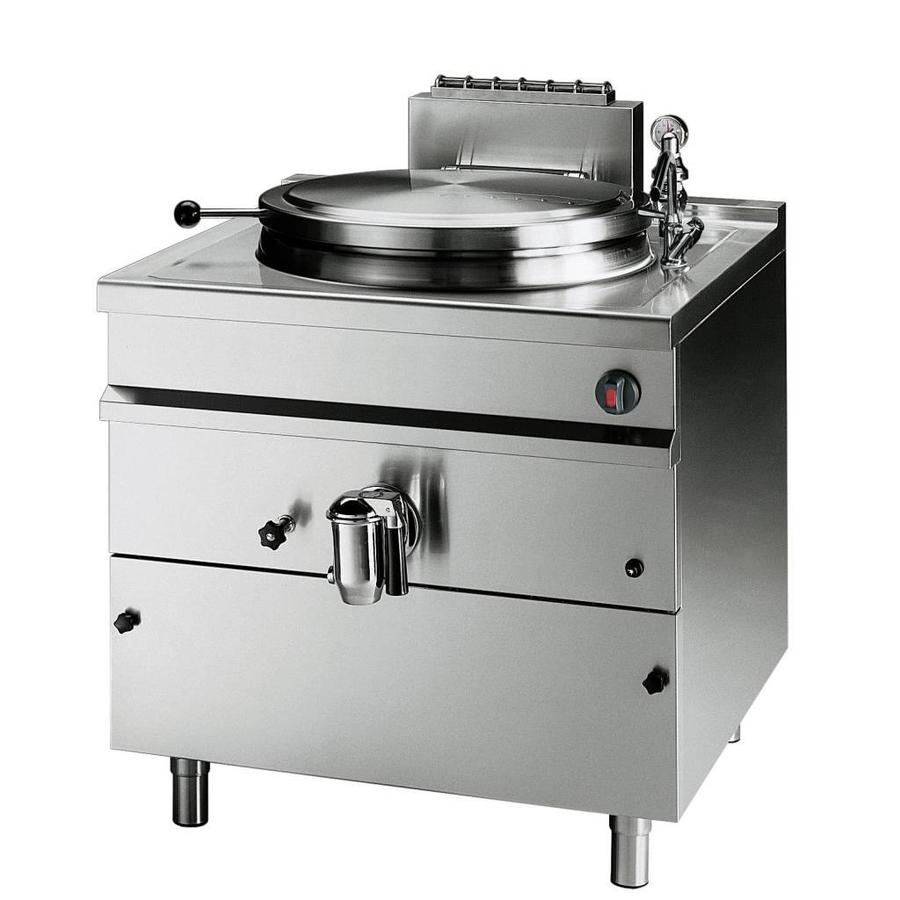

Model: PM9 IG500A
Dimensions: 1150 x 1300 x 900mm
Content: 500 litres
Power: 58 kW
Boiler inner dimensions: Ø 900 x H 780 mm
Weight: 380 kg
